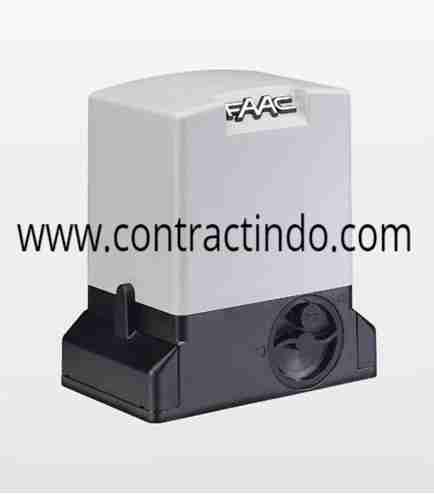

FAAC Ex Italy - 844 ER 230V Sliding Gate Operator
Rp. 0
Call For Price
Stok :
Tersedia
Belanja Nyaman, Hati Puas. Produk tidak sesuai? Tukar saja, ongkos kirim kami tanggung!
Technical specification
| Duty |
Light Commercial/Industrial |
| Power Consumption |
650W |
| Max Gate Weight |
1,800 kg |
| Max Speed |
9.5 m/min |
| Use frequency |
70% |
Show Varians
| Model Variant | Part Number | Application | Use Frequency | Limit Switch Type | Power Supply | Maximum Leaf Weight | Gate Obstacle Detection |
|---|---|---|---|---|---|---|---|
| 844 ER Z16 | 109837 |
Light commercial Industrial |
70.00% | Inductive | 230V | 1800 | No encoder |
| 844 R | 109838 |
Light commercial Industrial |
70.00% | Inductive | 230V | 1800 | No encoder |
Key features
- Ideal for commerical and industrial applications
- Anti-crushing safety
- As the gearmotor is non reversing, no electric locks need to be installed
- In the event of a power cut, the key-operated release device makes it possible to open and close the gate manually
- Twin-disk clutch in oil-bath
- Inductive or magnetic limit switch (according to model)
Product details
Gearmotor for sliding gates with max weight of 1,800 kg
