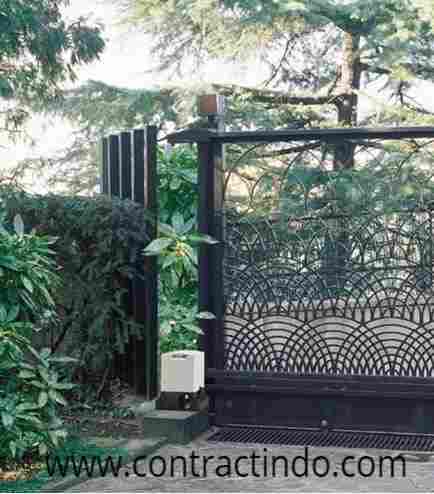

FAAC Ex Italy - 746 ER 230V Sliding Gate Operator
Rp. 0
Call For Price
Stok :
Tersedia
Belanja Nyaman, Hati Puas. Produk tidak sesuai? Tukar saja, ongkos kirim kami tanggung!
Technical specification
| Duty |
Residential/Light Commercial/Industrial |
| Power Consumption |
300W |
| Max Gate Weight |
600 |
| Max Speed |
9.6 m/min |
| Use frequency |
70% |
Show Varians
| Model Variant | Part Number | Application | Use Frequency | Limit Switch Type | Power Supply | Maximum Leaf Weight | Gate Obstacle Detection |
|---|---|---|---|---|---|---|---|
| 746 ER Z16 | 109776 |
Light commercial Residential Industrial |
70.00% | Inductive | 230V | 600 | Encoder |
| 746 ER Z20 | 109773 |
Light commercial Residential Industrial |
70.00% | Inductive | 230V | 400 | Encoder |
| 746 ER CAT | 109774 |
Light commercial Residential Industrial |
70.00% | Inductive | 230V | 400 | Encoder |
| 746 ER RF | 109775 |
Light commercial Residential Industrial |
70.00% | Inductive | 230V | 400 | Encoder |
Key features
- Maximum anti-crushing safety by coupling the twin-disk oil-bath clutch with the electronic device and encoder
- As the gearmotor is non reversing, no electric locks need to be installed.
- Key protected lever release device
- Magnetic limit switch device, simplified installation of limit switch magnets
- Designed for height and side adjustable fastening
- Control board, protected by a housing, for simplified programming via display
Product details
Gearmotor for sliding gates with max weight of 600 kg
